Drill with Precision: A Guide to Dremel Rotary Tool Drill Bits

[DremelJohn]

Dremel rotary tool drill bits are available in multiple types, each suited for different applications. The mauve color code category designates drill bits, helping distinguish them from other Dremel accessories. These bits are designed for precise drilling in a variety of materials. For optimal control when using small drill bits, pairing them with the Dremel 220-01 Workstation™ is recommended. This workstation enhances stability and accuracy, allowing for clean, precise holes while minimizing the chance of breakage.

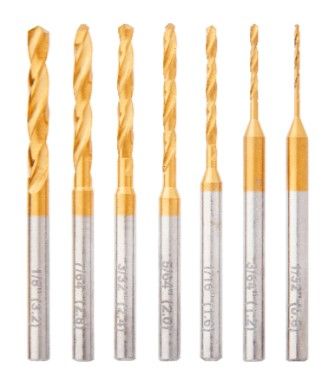

628HP Drill Bit Set

A handy addition to your Dremel rotary toolbox, this titanium-coated Drill Bit Set includes 7 drill bits with a case container to keep bits organized, ideal for drilling into wood, plastics, soft metals, and drywall. Made of high-grade stainless steel with deep threads and a titanium coating, these drill bits are built for durability. The bits have a standardized 1/8" shank diameter, with sizes ranging from 1/32 in. to 1/8 in.

Model number: 628HP

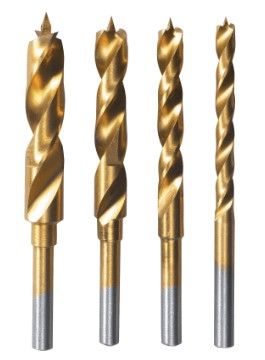

631-01 Brad Point Drill Bit Set

The Dremel Brad Point Drill Bit features a set of four titanium-coated brad points designed to provide more accurate and cleaner results. Brad point drill bits maintain their original contact point, allowing you to stay on center and begin drilling immediately. Ideal for furniture making, doweling, cabinetry, and a variety of other woodworking projects. Drill into hardwood, softwood, soft metal, or plastic. Four drilling accessories included: 1/8" (3.2 mm), 5/32" (4.0 mm), 3/16" (4.8 mm), and 1/4" (6.4 mm).

Model number 631-01

Glass Drilling Bits

Dremel Glass Drilling Bits are diamond-impregnated core-style bits that feature superior long life and are ideal for drilling in both flat and contoured surfaces. Diamond grit a full 360-degrees around the circumference of the bit allows it to be used in a rasping action to enlarge a hole if needed. Holes on the side of the bit allow the removal of glass dust from inside the bit. For use on glass, ceramic wall tile, glass block, glass bottles, jewelry. Available sizes: 1/8” (3.2mm) and 1/4" (6.4 mm).

Model numbers: 662DR, 663DR

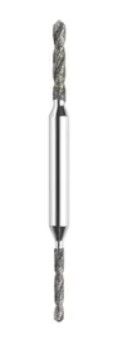

Diamond-Coated Drill FlipBit

The Diamond-Coated Drill FlipBit features superior long life compared to other diamond drill bits and its flute design is faster at eliminating material compared to core bits. Its one-of-a-kind FlipBit design lets you drill two hole sizes with one bit by simply flipping the bit over to select a different size. The FlipBit is ideal for drilling in both flat and contoured surfaces and can be used to enlarge holes and make small cuts. Makers will find the FlipBit ideal for creating jewelry, ornaments, art, and décor and can be used on glass, ceramic wall tile, glass block, stone, and glass bottles. Sizes: 1/16” (1.6mm) and 3/32” (2.4mm).

Model number: 664DR

More

Be sure to tell us about your experiences with Dremel drilling accessories in the comments below. If you have any questions about these accessories, you can also contact Dremel customer service using the link below.
